Electra Saver II G2 Series 40-50HP Compressors

Electra Saver II G2 Series

Founded on slow-speed, 1800 rpm design principles the new Electra Saver II G2 40-50 hp compressors feature super-sized bearings and up to 40 percent larger airends than the competition. The larger airends, running at slower speeds, maximize efficiency and reduce wear and tear, while the permanent alignment of the airend and motor ensure maximum coupling and bearing life.

  • 60Hz
  • 204 to 251 cfm
  • 40 – 50hp
  • Direct-Gear Drive
  • Enclosed or Un-Enclosed
  • 68-78 dBA
  • Details

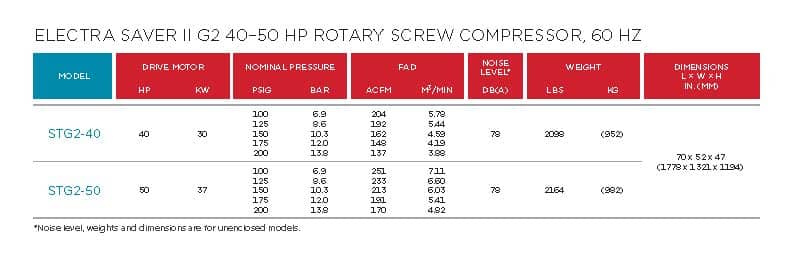

  • Performance
  • Air or water cooled
  • 1800rpm ODP and TEFC motor options
  • Stainless steel control lines
  • High performance airend with integrated thermostatic mixing valve and oil filter
  • NEMA 4 control enclosure
  • AirSmart G2 microprocessor controller
  • Modulation and Load/no load capacity control
  • Leak-free Viton Victaulic couplings
  • Tip-out air and oil cooler
