VST Series 55-260kW (75-350hp)

Gardner Denver VST Series: Designed from the ground up as a variable speed two stage system the VST is the most efficient product in the market. Optimum supply and demand side matching produces un-paralleled efficiencies across all loads. With models from 55 to 260kW Gardner Denver provides the most comprehensive product offering in a two-stage solution.

60Hz
339 to 2032cfm
Two Stage, Variable Speed, Direct Drive
68 – 80dBA
Wide turndown range
Air Smart Controller

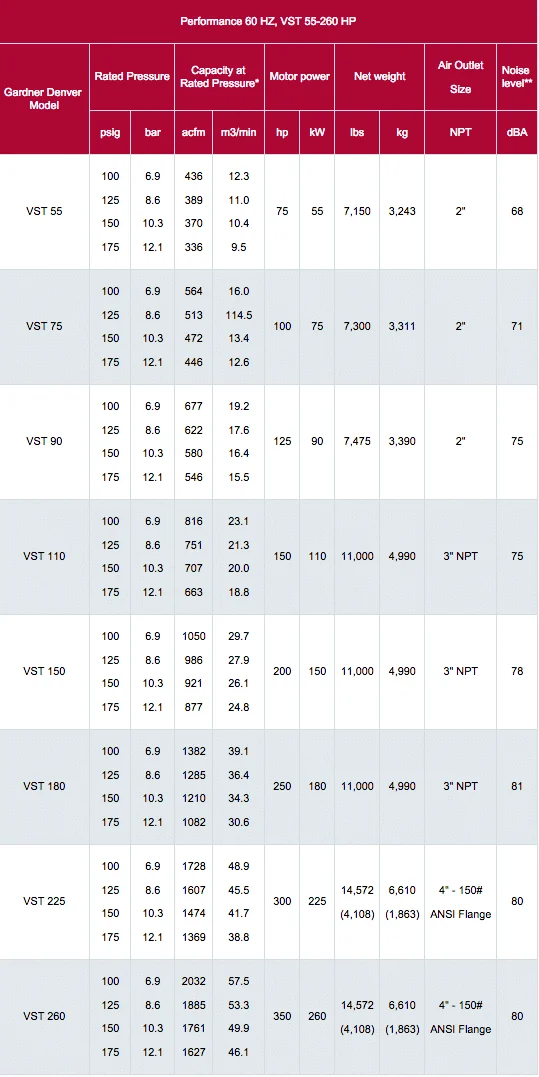

Performance
Design Advantages
Associated Equipment

* Capacity measured in accordance with CAGI/PNEUROP acceptance test code PN2CPTC2.

** Noise level measured in accordance with ISO 2151.

Efficiency

Two-stage compression providing 8-12% improvement in overall efficiency versus a single stage compressor.
Variable speed drive designed to maximize efficiency at full, part and no load. Delivers substantial efficiency improvements at part and no load.
Airends optimized for variable speed operation and best overall performance.
Matched supply side to the demand side at the required target pressure to within +/- 1psi.
Unlimited start/stop operation eliminating reservoir compressed air waste.

Flexibility

AirSmart^TM Controller with variable frequency drive to meet all your variable pressure and flow requirements.
Target pressure change by the operator with the touch of a button from 100 to 175psig.
Variable speed control matches the output of the compressor package to the exact requirements of your system demand.
Wide turn down range (20% of full load) providing largest operating range to meet all your flow needs.
Minimal storage requirements with capability of maintaining a +/- 1psi with as little as 1/2 gallon of storage per cfm output.
Models from 55kW (75hp) to 260kW (350hp) giving you the widest selection in the industry.
